50kWh RUiXU Lithium Batteries Kits | 10 Batteries + 10 slot cabinet | CEC | SGIP

RX-LFP48100

Nominal voltage ：51.2V

Nominal capacity@0.2C ：100 Ah

Min. capacity@0.2C：100 Ah

Nominal energy :5120Wh

Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch

Weight: ~47kg (103.6lb)

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

Standard Included

(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(2) RS485 Communication Cable

(3) Ground Cable

(4) Set of Parallel  30CM4AWG Cables  per battery

(5)  10 slot battery pre-assembled cabinet

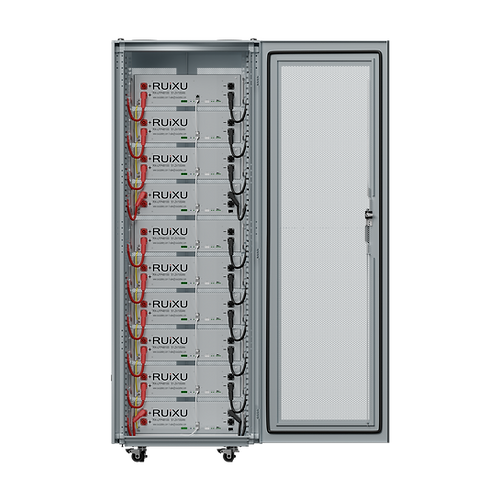

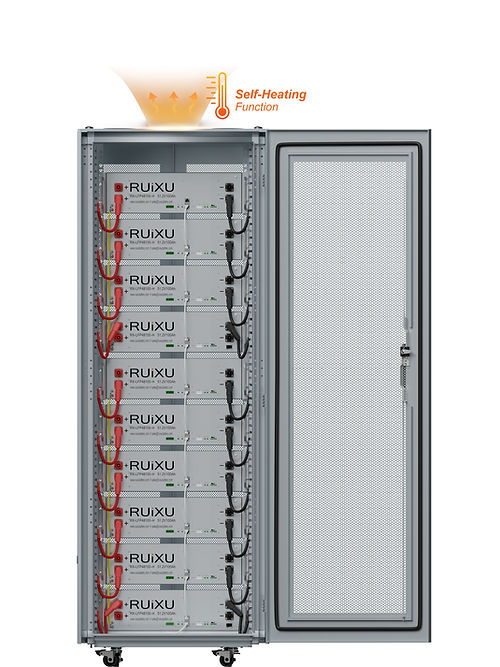

Pre-Assembled  10 Slot Battery Cabinet | busbar & wheels & busbar cover included

• Constructed from heavy-duty steel
• 10 slot Rack
• Durable grey white powder-coated finish
• Heavy-duty bus bars with protective covers
• Lockable front door and side panels
• A set of Cage Nuts screws
• Heavy Duty Casters

• Quick open side panel for easy maintenance.

9540A Testing Completed

Firmware Update
