RUiXU Battery Installation -Bracket Rack-Flexibility & Stackable | CEC | SGIP

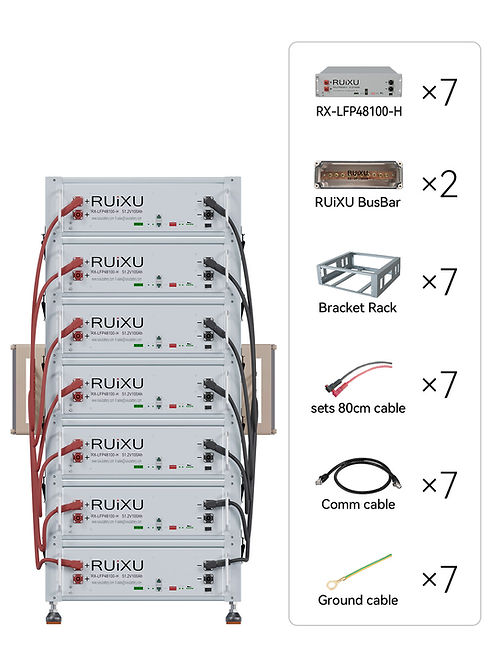

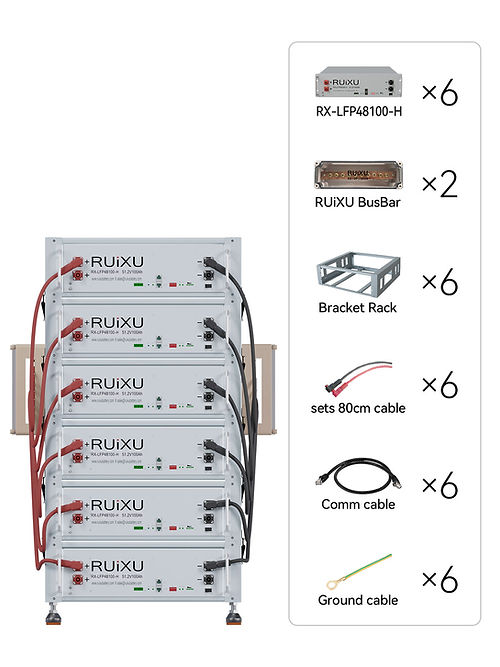

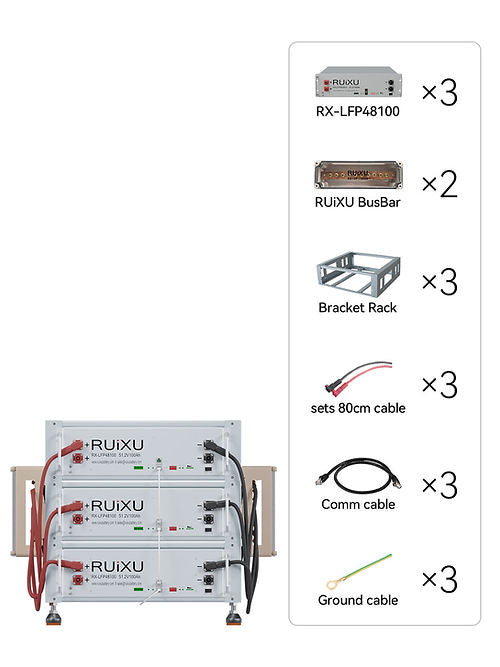

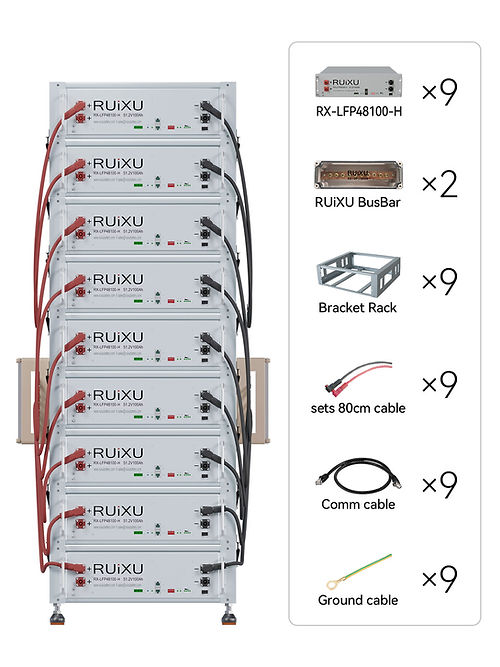

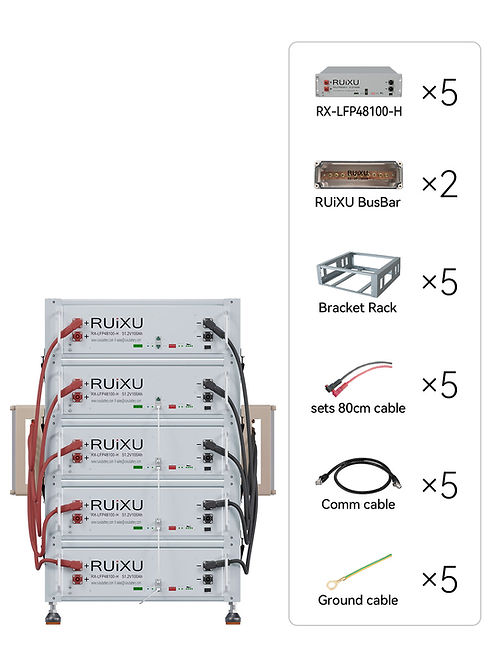

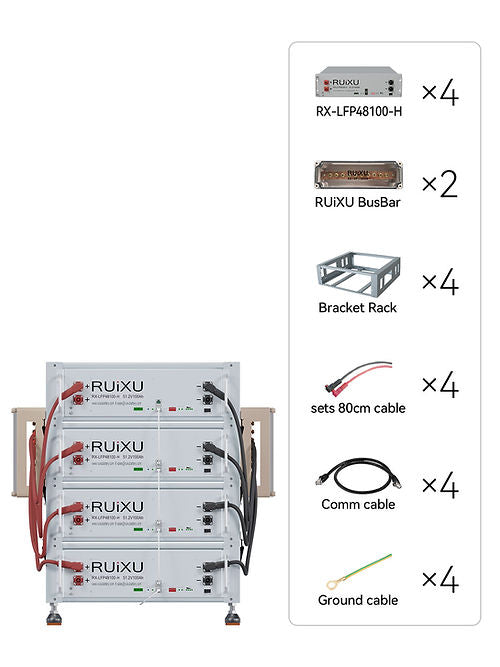

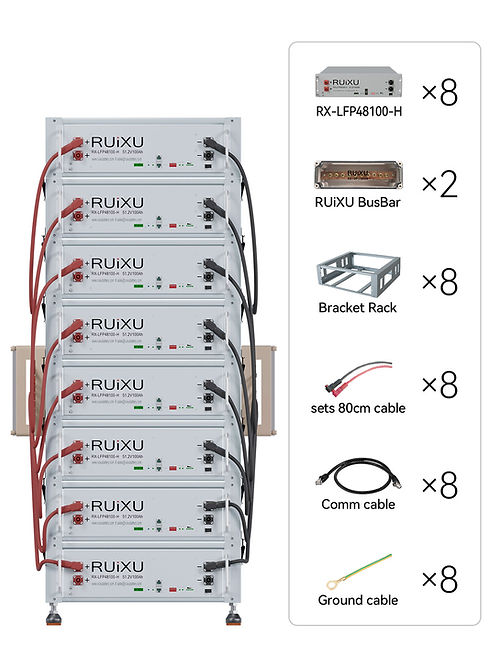

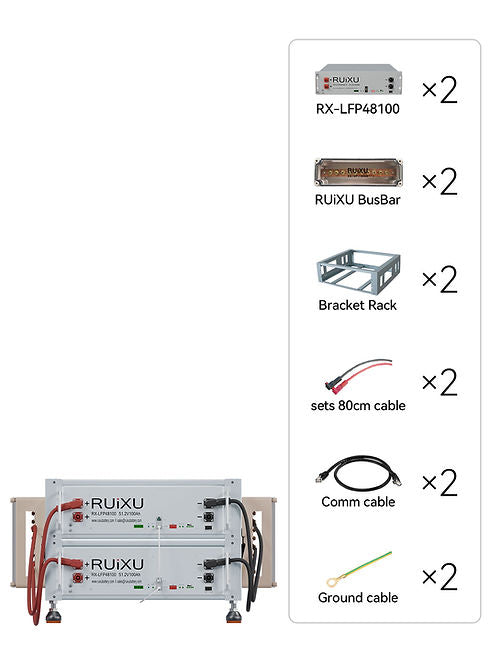

RUiXU Server Rack Battery Optional Installation Method -Bracket Racks
1).Flexibility & Stackable
2).10kWH-45kWH,Max 9 Stacks
3).A rack can be added as needed it
4).RUiXU Busbar included
RUiXU bracket rack is a specially designed accessory that allows you to stack up to nine Ruixu RX-LFP48100 lithium batteries vertically in a compact and stable configuration. The RUiXU bracket rack is the perfect solution for homeowners and businesses who want to enjoy the benefits of a reliable, scalable, and cost-effective energy storage system.
RX-LFP48100
Nominal voltage ：51.2V
Nominal capacity@0.2C ：100 Ah
Min. capacity@0.2C：100 Ah
Nominal energy :5120Wh
Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
Weight: ~47kg (103.6lb)
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback
Standard Included
(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RJ45/CAT5e Patch Cables
(1) Ground Cable
(1) Set of Parallel 4AWG Cables per battery
Compatible with All Leading Inverters
Voltronic or MPP Inverter
Sol-ark Inverter
Deye Inverter
Victron Inverter
Growatt Inverter
Schneider Inverter
Why Choose RUiXU Server Rack Battery ?
