RUiXU | Lithi2-16 | 51.2V314Ah | 16kWh Battery Storage | UL1973,9540A,CEC,SGIP

Lithi2-16

Nominal voltage ：51.2V

Nominal capacity@0.2C ：314 Ah

Min. capacity@0.2C：314 Ah

Nominal energy :16.07kWh

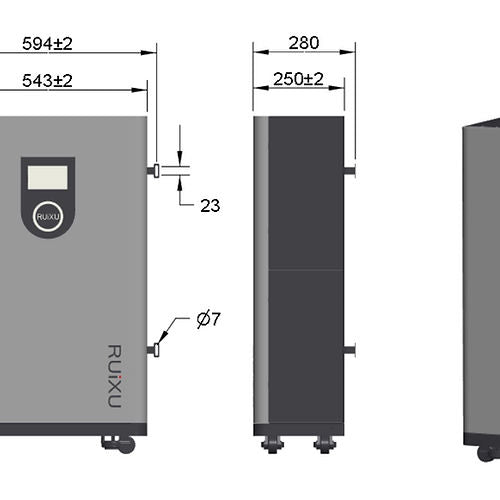

Dimesion(H*W*D):924(with wheels)*543*250mm | 36.3(with wheels)*21.3*10inch

Weight: ~145kg （320lb)

COMMUNICATIONS:

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

EXPANDABLE

Support 32pcs in parallel

expandable from 16kWh to 257kWh for both residential and commercial buildings.

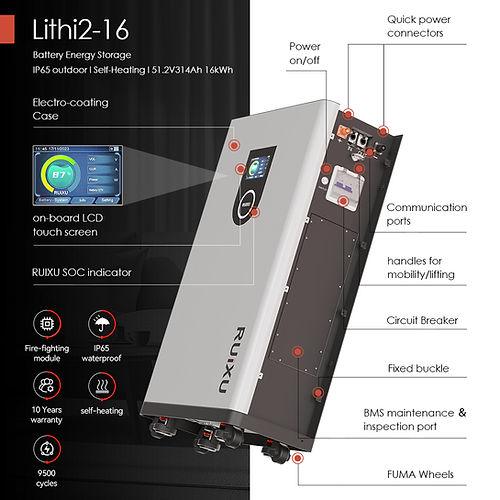

Quick plugs provide 250A (continuous) overcurrent capacity, easy tool-less connection, long-term anti-loosening and heating protection.

Four concealed heavy-duty Fuma wheels facilitate movement of the battery without detracting from the elegant design. An anti-tipping mount on the back anchors the battery to the wall.

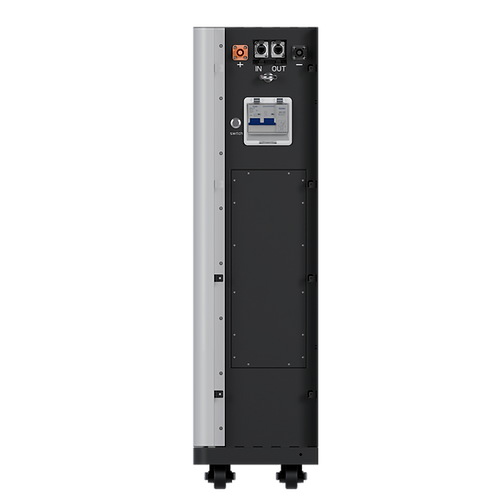

An inspection port on the side of the battery provides access to the BMS and fuse for ease of maintenance.

All-pole, dual protection through fuse (negative terminal) and micro circuit breaker (positive terminal).

A double equilibrium approach achieves efficient cell balancing by calculating capacity differences between battery cells from charging-process data and by extending the balancing time, improving the efficiency and reliability compared to general passive and active balancing modes.

Keeping your battery charged in cold temperatures .
