RUiXU Lithium Batteries Kits | 15kWH, 20kWH, 25kWH, 30kWH | Self-Heating
RX-LFP48100-H
Nominal voltage ：51.2V
Nominal capacity@0.2C ：100 Ah
Min. capacity@0.2C：100 Ah
Nominal energy :5120Wh
Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
Weight: ~47kg (103.6lb)
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

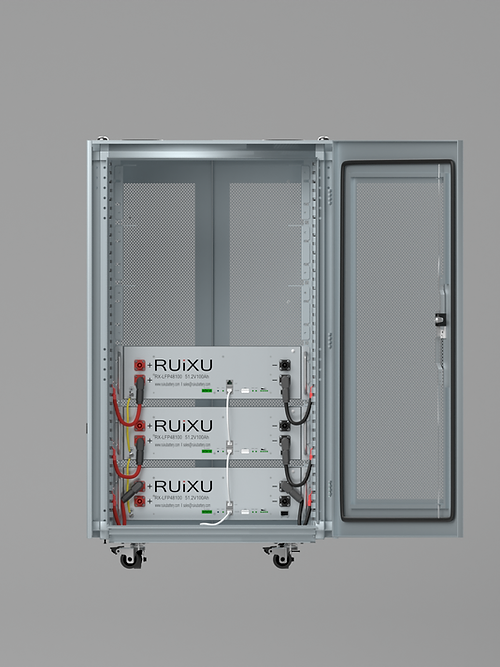

15kWh Lithium Batteries Kits Standard Included:
(3) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
(3) RJ45/CAT5e Patch Cable
(3) Ground Cable
(3) Sets 30cm Parallel 4AWG Cables per battery
(1) Pre-assembled 6 Slot Battery Cabinet

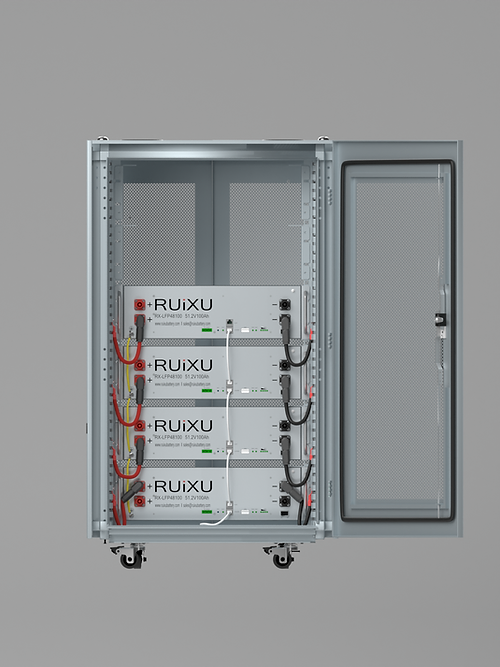

20kWh Lithium Batteries Kits Standard Included:
(4) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
(4) RJ45/CAT5e Patch Cable
(4) Ground Cable
(4) Sets 30cm Parallel 4AWG Cables per battery
(1) Pre-assembled 6 Slot Battery Cabinet

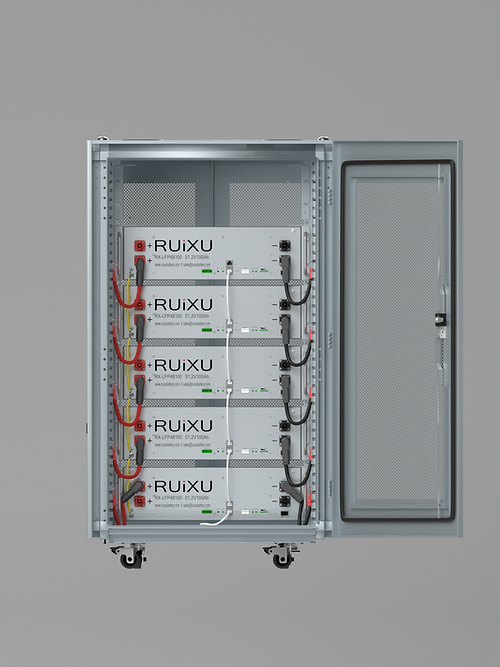

25kWh Lithium Batteries Kits Standard Included:
(5) RUiXU Self-heating 48V Server Rack battery (RX-LFP48100-H)
(5) RJ45/CAT5e Patch Cable
(5) Ground Cable
(5) Sets 30cm Parallel 4AWG Cables per battery
(1) Pre-assembled 6 Slot Battery Cabinet

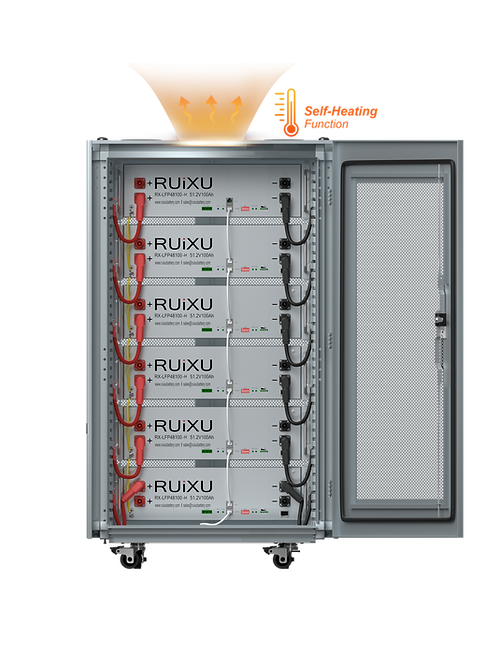

30kWh Lithium Batteries Kits Standard Included:
(6) RUiXU self-heating 48V Server Rack battery (RX-LFP48100-H)
(6) RJ45/CAT5e Patch Cable
(6) Ground Cable
(6) Sets 30cm Parallel 4AWG Cables per battery
(1) Pre-assembled 6 Slot Battery Cabinet
Compatible with All Leading Inverters
Voltronic or MPP Inverter
Sol-ark Inverter
Deye Inverter
Victron Inverter
Growatt Inverter
Schneider Inverter
Sunmax Energy LLC is officially authorized by both SOK and RUiXU to distribute lithium battery products in the U.S. via Amazon, TikTok, and sunmaxsolary.com.
You can download our distributor agreements here:
🔽 [Download SOK Distributor Agreement](PDF)
🔽 [Download RUiXU Distributor Agreement](PDF)
