RX-LFP48100 | 19" Rack Mounted 3U Module | UL1973 | UL9540A| CEC | SGIP

RX-LFP48100

Nominal voltage ：51.2V

Nominal capacity@0.2C ：100 Ah

Min. capacity@0.2C：100 Ah

Nominal energy :5120Wh

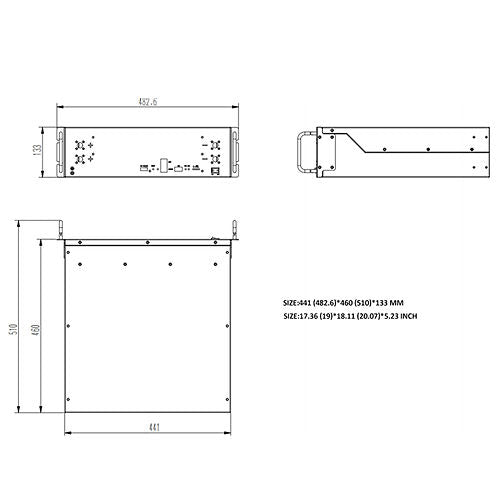

Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch

Weight: ~47kg (103.6lb)

Modular

Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.

Inverter Protocol Choosing

Use DIP address to set the RS485 baud rate and inverter protocol choosing

Communications

Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,

Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,

MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback

Standard Included

(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RJ45/CAT5e Patch Cables

(1) Ground Cable

(1) Set of Parallel 4AWG Cables  per battery

Compatible with All Leading Inverters
Voltronic or MPP Inverter
Sol-ark Inverter
Deye Inverter
Victron Inverter
Growatt Inverter
Schneider Inverter

Use Manual

Spec Sheet

Why Choose RUiXU Server Rack Battery ?

UL1973 Certified

UL9540A Certified

Firmware Update
