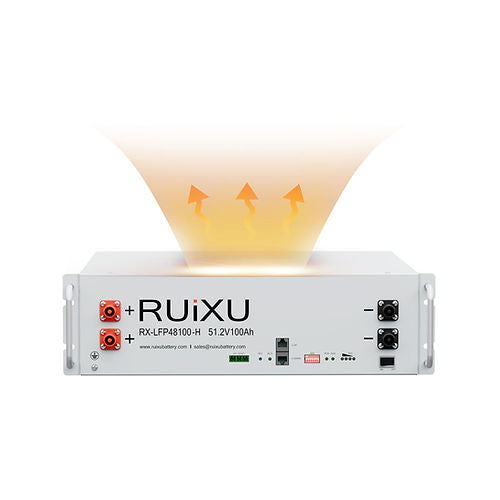

RX-LFP48100-H| 19" Rack Mounted 3U Module| Self-heating| UL1973 9540A CEC SGIP
48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery
RX-LFP48100-H
Nominal voltage ：51.2V
Nominal capacity@0.2C ：100 Ah
Min. capacity@0.2C：100 Ah
Nominal energy :5120Wh

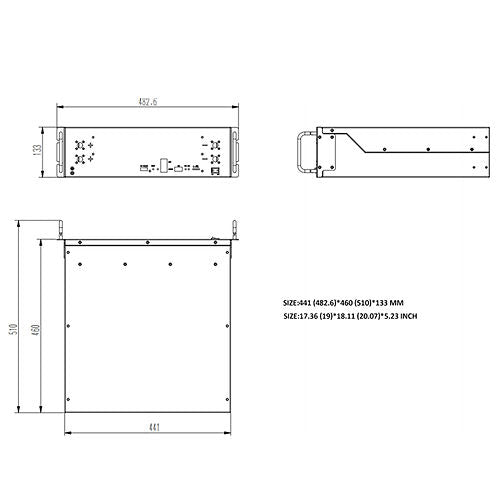

Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
Weight: ~47kg (103.6lb)
Modular
Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
MUST,Sunsynk,Schneider
RS485 : MPP,Voltronic,RCT,Alpha outback
Standard Included
(1) RUiXU 48V Server Rack battery (RX-LFP48100)
(1) RJ45/CAT5e Patch Cable
(1) Ground Cable
(1) Set of Parallel 4AWG Cables per battery
Compatible with All Leading Inverters
Voltronic or MPP Inverter
Sol-ark Inverter
Deye Inverter
Victron Inverter
Growatt Inverter
Schneider Inverter
Why Choose RUiXU Server Rack Battery ?
